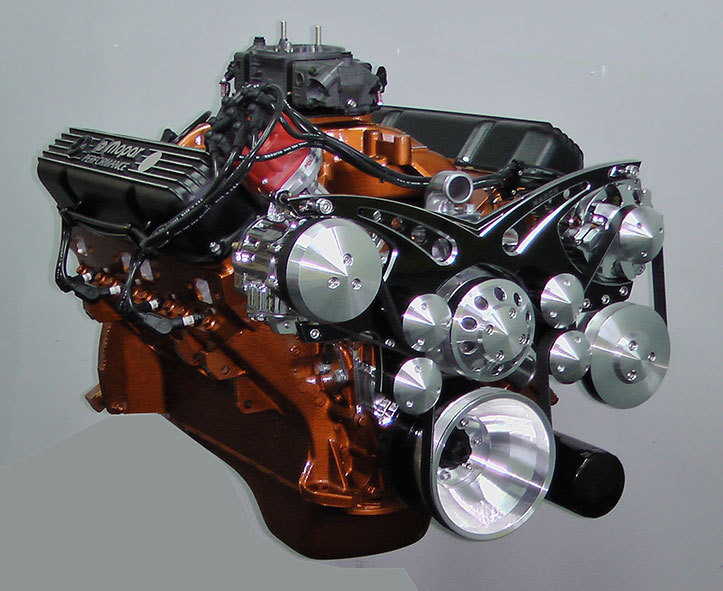

Custom Built 499CI 525HP Mopar Crate Engine
Estimated Price $18,445
*Shown with optional upgrades
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Chrysler 499CI stroker with 525 HP aluminum head engine package can be custom designed to your specific needs. All engines can be custom painted to match your vehicle at your request. We can outfit your engine with a Performance serpentine belt system. We can also assist you in choosing the proper transmission and stall speed converter combination for your vehicle and have it shipped directly to you as your performance crate engine is being built. Over the years we have built many Chrysler engines. If you would like us to build you a stroker mechanical roller, we can build more or less horse power to accommodate your needs.
Custom Built 499CI 525HP Mopar Crate Engine
- Seasoned Chrysler 440 Block
- Bored and honed with deck plate
- Mains have been aligned
- Block has been decked
- Dura Bond cam bearings Installed
- Brass freeze plug and oil galley kit installed
- ARP Main bolts
- Block painted with 3 coats of high temp ceramic engine paint
- Steel crankshaft 3.750 stroke (Eagle or Scat)
- Forged connecting rods (Eagle or Scat)
- High performance forged pistons (Mahle, Icon, DSS, or JE)
- Performance rod and main bearing (Clevite, King or Federal Mogul)
- Performance rings hand filed to match application
- The complete rotating assembly will be balanced (Internal)
- Custom ground roller performance camshaft
- Three piece true double roller timing set
- Retro fit tie-bar roller lifters
- Performance aluminum cylinder heads
- High performance valve springs and retainers (to match camshaft)
- Chrome moly push rods
- Performance shaft mount roller rockers
- Melling high volume oil pan
- Melling oil pick up
- Oil pan
- Dipstick and tube
- Timing cover
- Engine will be assembled with all new bolts
- ARP head bolts
- Fel-Pro performance gaskets
- Performance balancer
- Aluminum performance intake manifold
- Thermostat housing
- Holley Sniper II EFI
- Holley HyperSpark distributor (requires ignition control)
- MSD Blaster II coil and bracket
- Spark plugs
- 8mm Ignition wires
- Water pump
- Valve covers
- Breathers
- Engines are photo documented during the building process so you can see the quality of parts and workmanship that goes into your engine
- 2 Year Unlimited Miles Warranty
Pulley Systems

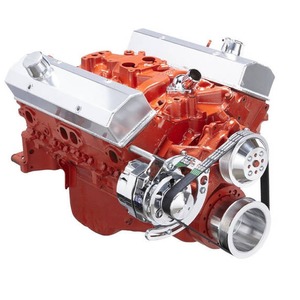

Alternator Only
This system includes the following items:
- Chrome 140 Amp Alternator
- Polished Alternator Pulley
- Polished Crankshaft Pulley
- Polished Water Pump Pulley
- Polished Aluminum Brackets With Fan & Nose Cover
- 8 Rib Serpentine Belt
- Installed On Your Engine
Add $1,675
Alternator & Power Steering
This system includes the following items:
- Chrome 140 Amp Alternator
- GM Type 2 Power Steering Pump With Reservoir
- Polished Alternator Pulley
- Polished Crankshaft Pulley
- Polished Water Pump Pulley
- Polished Aluminum Brackets With Fan & Nose Cover
- Polished Idler Pulley
- Spring Loaded Belt Tensioner
- 8 Rib Serpentine Belt
- Installed On Your Engine
Add $1,875

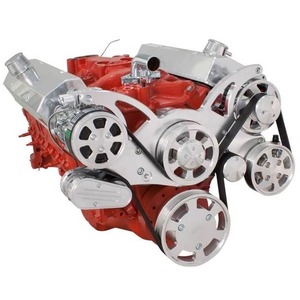

Alternator, Power Steering & Air Conditioning
This system includes the following items:
- Chrome Plated 140 Amp Alternator
- GM Type 2 Power Steering Pump With Reservoir
- Chrome Plated AC Compressor
- Polished Alternator Pulley
- Polished Crankshaft Pulley
- Polished Water Pump Pulley
- Polished Aluminum Brackets With Fan & Nose Cover
- Spring Loaded Belt Tensioner
- 8 Rib Serpentine Belt
- Installed On Your Engine
Add $2,300
Dyno Testing
Have your new crate engine Dyno tested!
Proformance Unlimited measures over 30 parameters that are monitored and logged to the computer during each engine test. A complete printout, including graphs.
We tune your engine on the dyno for maximum power. No more endless trial and error methods at the track are required. You see your results instantly! Dynamometer testing costs a fraction of what you have invested. Take the guesswork out of tuning - by dynoing !
This system includes the following items:
- Your engine will be broken in under various load conditions
- Tested in real world conditions through headers and mufflers
- Precise horsepower and torque rating with graph and numerical print out
- Induction system tuned for optimal performance
- Dyno session video taped
Add $850
Dress Up
Custom Painted Engine
Have a custom painted car? Why not have a custom painted engine? Give us your paint code and we'll do the rest.
This system includes the following items:
- Custom paint
Add $550
Parts
MSD Street Fire CD Ignition
MSD Street Fire CD ignitions are perfect for budget-minded enthusiasts. Street Fire CD ignitions offer capacitive discharge technology that fires a series of multiple sparks for 20 degrees of crankshaft rotation when the engine is running under 3,000 rpm. This ensures complete combustion and produces great throttle response with a smooth idle. MSD’s Street Fire CD ignitions are built within a durable cast aluminum housing and easily connects to points, amplifiers, and magnetic pickup distributors. There’s even an adjustable rev limiter (100 rpm increments) for overrev protection!
This system includes the following items:
- Ignition Control Module; Street Fire CDI
Add $275
Fuel Delivery Systems
Holley Terminator X Multi-Port Fuel Injection
This system includes the following items:
- Multi-Port EFI Intake
- Terminator X ECU
- Holley Wiring Harness
- Handheld Controller
- (8) Injectors Matched To Application
- Billet Fuel Rail
- Internal MAP Sensor
- Throttle Position Sensor
- Idle Air Control
- Coolant Temp Sensor
- Wide band O2 Sensor
- Hyper Spark Distributor
- -06AN Fuel Inlet Fitting
Add $1,500
Does this engine look like a good fit?
