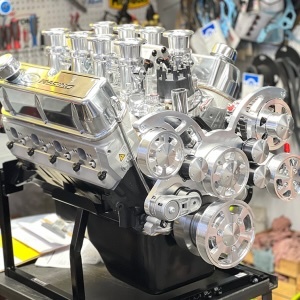

427W 550HP Stack Injected SBF Stroker Engine

Estimated Price $19,945

427W 550HP Stack Injected SBF Stroker Engine
*Shown with optional upgrades

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Are you in the market for an engine with real old school looks but performs like a late model engine? This build is the engine for you. Check out all the great parts that go into this 351w based 427CI stroker engine package. Like all of our engines, they are build in house one at a time. Don’t forget to like our Facebook page @customcrateengines.

427W 550HP Stack Injected SBF Stroker Engine

  • Fully machined seasoned 351w Ford roller block
  • Block painted with 3 coats of high temp ceramic engine paint
  • Forged steel crankshaft 4.170 stroke (Eagle or Scat)
  • Forged connecting rods (Eagle, or Scat)
  • High performance forged pistons (Icon, Mahle or SRP)
  • Performance rod and main bearing (Clevite, King or Federal Mogul)
  • Performance rings hand filed to match application
  • Main bolts (ARP)
  • The complete rotating assembly is balanced
  • Three piece double roller timing set
  • Custom ground hydraulic roller camshaft
  • Hydraulic roller lifters
  • Performance aluminum cylinder heads (AFR or Edelbrock)
  • Screw in studs and hardened guide plates
  • Chrome moly push rods
  • Performance roller rockers
  • Melling oil pump and screen
  • Oil pan (Front Sump)
  • Dipstick and tube
  • Aluminum timing cover with scale
  • Fel-Pro gaskets
  • Performance balancer
  • Aluminum valve covers with baffles (Polished, or Black)
  • As cast stack induction system (Borla, or InnoV8)
  • Calibrated ECU (Holley Terminator X)
  • Main ECM Engine Wiring Harness
  • Fuel Injector Harness
  • Engine Coolant Temperature Sensor
  • Manifold Air Pressure Sensor
  • Fuel Injectors
  • Wide Ban O2 Sensor
  • Intake Air Temperature Sensor
  • Holley dual sync distributor (Requires CDI Box)
  • Coil and bracket (MSD)
  • Spark plugs
  • Ignition wires
  • Wire Looms
  • Fuel Pump Block Off Plate
  • Valve Cover Breathers (Polished, or Black)
  • Water pump (To match application)
  • 6 Quarts Of Oil
  • Oil Filter
  • Engines are photo documented during the building process
  • 2 Year unlimited miles warranty

CVF Logo

Pulley Systems

Alternator Only *

Alternator Only *

This system includes the following items:

  • Chrome 140 Amp Alternator
  • Polished Alternator Pulley
  • Polished Crankshaft Pulley
  • Polished Water Pump Pulley
  • Polished Aluminum Brackets With Fan & Nose Cover
  • 8 Rib Serpentine Belt
  • Installed On Your Engine

Add $1,675

Alternator & Power Steering *

Alternator & Power Steering *

This system includes the following items:

  • Chrome 140 Amp Alternator
  • GM Type 2 Power Steering Pump With Reservoir
  • Polished Alternator Pulley
  • Polished Crankshaft Pulley
  • Polished Water Pump Pulley
  • Polished Aluminum Brackets With Fan & Nose cover
  • Polished Idler Pulley
  • Spring Loaded Belt Tensioner
  • 8 Rib Serpentine Belt
  • Installed On Your Engine

Add $1,875

Alternator, Power Steering & Air Conditioning *

Alternator, Power Steering & Air Conditioning *

This system includes the following items:

  • Chrome Plated 140 Amp Alternator
  • GM Type 2 Power Steering Pump With Reservoir
  • Chrome Plated AC Compressor
  • Polished Alternator Pulley
  • Polished Crankshaft Pulley
  • Polished Water Pump Pulley
  • Polished Aluminum Brackets With Fan & Nose Cover
  • Spring Loaded Belt Tensioner
  • 8 Rib serpentine belt
  • Installed On Your Engine

Add $2,300

Dyno Testing

Have your new crate engine Dyno tested!

Have your new crate engine Dyno tested!

Proformance Unlimited measures over 30 parameters that are monitored and logged to the computer during each engine test. A complete printout, including graphs.

We tune your engine on the dyno for maximum power. No more endless trial and error methods at the track are required. You see your results instantly! Dynamometer testing costs a fraction of what you have invested. Take the guesswork out of tuning - by dynoing !

This system includes the following items:

  • Your engine will be broken in under various load conditions
  • Tested in real world conditions through headers and mufflers
  • Precise horsepower and torque rating with graph and numerical print out
  • Induction system tuned for optimal performance
  • Dyno session video taped

Add $850

Miscellaneous

Ford Racing Double Sump Oil Pan

Ford Racing Double Sump Oil Pan

This system includes the following items:

Add $275

Dress Up

Custom Painted Engine

Custom Painted Engine

Have a custom painted car? Why not have a custom painted engine? Give us your paint code and we'll do the rest.

This system includes the following items:

  • Custom paint

Add $550
