LS 430CI 675HP Complete Crate Engine

Estimated Price $16,595

LS 430CI 675HP Complete Crate Engine

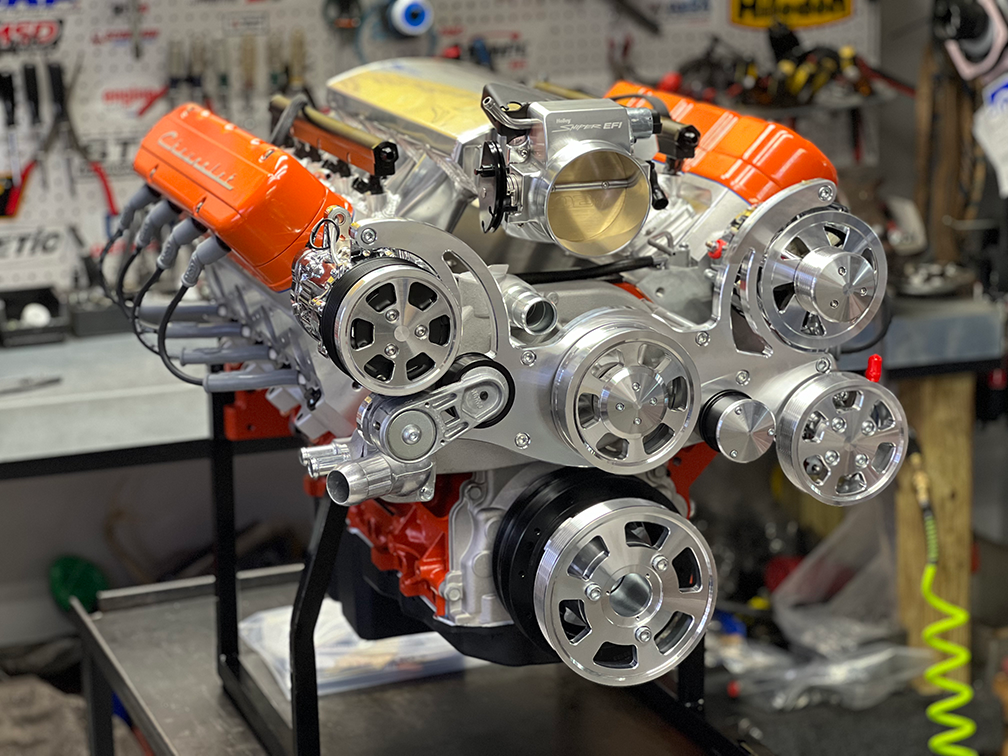

*Shown with optional upgrades

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Our LS 430CI 675HP crate engine package is dyno tested ready for installation. This build features higher quality parts from the ground up at a more reasonable cost. Some of this engines main features include an aluminum LS3 6 bolt main block, completely forged bottom end, custom ground hydraulic roller camshaft, performance LS3/L92 cylinder heads, full roller rocker arms and a muscle car oil pan designed to fit almost every application. We can also assist you in picking out the correct motor mount and header combination that will fit your hot rod, as well as a complete serpentine pulley kit and transmission.

LS 430CI 675HP Complete Crate Engine

  • Fully Machined LS aluminum Block
  • 4340 Forged Steel 4.125” Stroke Crankshaft (Eagle, Scat, or LPC)
  • H-Beam Rods 6.125” (Eagle, Scat, or LPC)
  • Performance Forged Pistons (Mahle, Icon, DSS, or JE)
  • Complete Assembly Balanced (Internal)
  • Performance Rings Hand Filed To Match Application
  • Custom Ground Hydraulic Roller Camshaft
  • Hydraulic Roller Lifters
  • Performance Timing chain set
  • Melling Oil pump
  • LS3/L92 Rectangle Port Aluminum Performance Cylinder Heads
  • 2.165 Pro Series Intake Valves
  • 1.590 Pro Series Exhaust Valves
  • 1.295” Dual Performance Valve Springs
  • 7 Degree Valve Retainers And Locks
  • Roller Rocker Arms
  • Chrome Moly Pushrods
  • Main bolts
  • ARP Head bolts
  • Aluminum Timing And Rear Cover
  • Aluminum Valley Tray
  • Muscle Car Stroker Oil Pan
  • Harmonic Balancer
  • Aluminum Valve Covers (Black, or Polished)
  • LS3 Style Coils
  • Fabricated Aluminum Intake Manifold (Black, or Shiny)
  • Cable Driven Throttle Body (Black, or Shiny)
  • Fuel Injectors
  • Fuel Rails
  • Coil Harness
  • Spark Plugs
  • 8.5mm Ignition Wires
  • Holley Terminator X ECU
  • Engine Wiring Harness
  • Fuel Injector Harness
  • Wide Ban O2 Sensor
  • Intake Air Temperature Sensor
  • Crankshaft Position Sensor
  • Camshaft Position Sensor
  • Engine Coolant Temperature Sensor
  • Manifold Air Pressure Sensor
  • Oil And Filter
  • Spark Plugs
  • Build will be photo documented during the assembly process
  • 2 Year Unlimited Miles Warranty

Dyno Testing

Have your new crate engine Dyno tested!

Have your new crate engine Dyno tested!

Proformance Unlimited measures over 30 parameters that are monitored and logged to the computer during each engine test. A complete printout, including graphs.

We tune your engine on the dyno for maximum power. No more endless trial and error methods at the track are required. You see your results instantly! Dynamometer testing costs a fraction of what you have invested. Take the guesswork out of tuning - by dynoing !

This system includes the following items:

  • Your engine will be broken in under various load conditions
  • Tested in real world conditions through headers and mufflers
  • Precise horsepower and torque rating with graph and numerical print out
  • Induction system tuned for optimal performance
  • Dyno session video taped

Add $650

Dress Up

Custom Painted Engine

Custom Painted Engine

Have a custom painted car? Why not have a custom painted engine? Give us your paint code and we'll do the rest.

This system includes the following items:

  • Custom paint

Add $450

CVF Logo

Pulley Systems

LS Alt Only Pulley Kit

LS Alt Only Pulley Kit

This system includes the following items:

  • Chrome 140 Amp Alternator
  • Polished Alternator Pulley
  • Polished Crankshaft Pulley
  • Polished Water Pump Pulley
  • Polished Aluminum Brackets With Fan & Nose Cover
  • 8 Rib Serpentine Belt
  • Installed on your engine

Add $1,675

LS Alt/PS Pulley Kit

LS Alt/PS Pulley Kit

This system includes the following items:

  • Chrome 140 Amp Alternator
  • GM Type 2 Power Steering Pump With Reservoir
  • Polished Alternator Pulley
  • Polished Crankshaft Pulley
  • Polished Water Pump Pulley
  • Polished Aluminum Brackets With Fan & Nose Cover
  • Polished Idler Pulley
  • Spring Loaded Belt Tensioner
  • 8 Rib Serpentine Belt
  • Installed On Your Engine

Add $1,875

LS Alt/PS And AC Pulley Kit

LS Alt/PS And AC Pulley Kit

This system includes the following items:

  • Chrome Plated 140 Amp Alternator
  • GM Type 2 Power Steering Pump With Reservoir
  • Chrome Plated AC Compressor
  • Polished Alternator Pulley
  • Polished Crankshaft Pulley
  • Polished Water Pump Pulley
  • Polished Aluminum Brackets With Fan & Nose Cover
  • Spring Loaded Belt Tensioner
  • 8 Rib Serpentine Belt
  • Installed on your engine

Add $2,300

Does this engine look like a good fit?
