LS3 416 575HP Complete Crate Engine

Estimated Price $15,690

LS3 416 575HP Complete Crate Engine

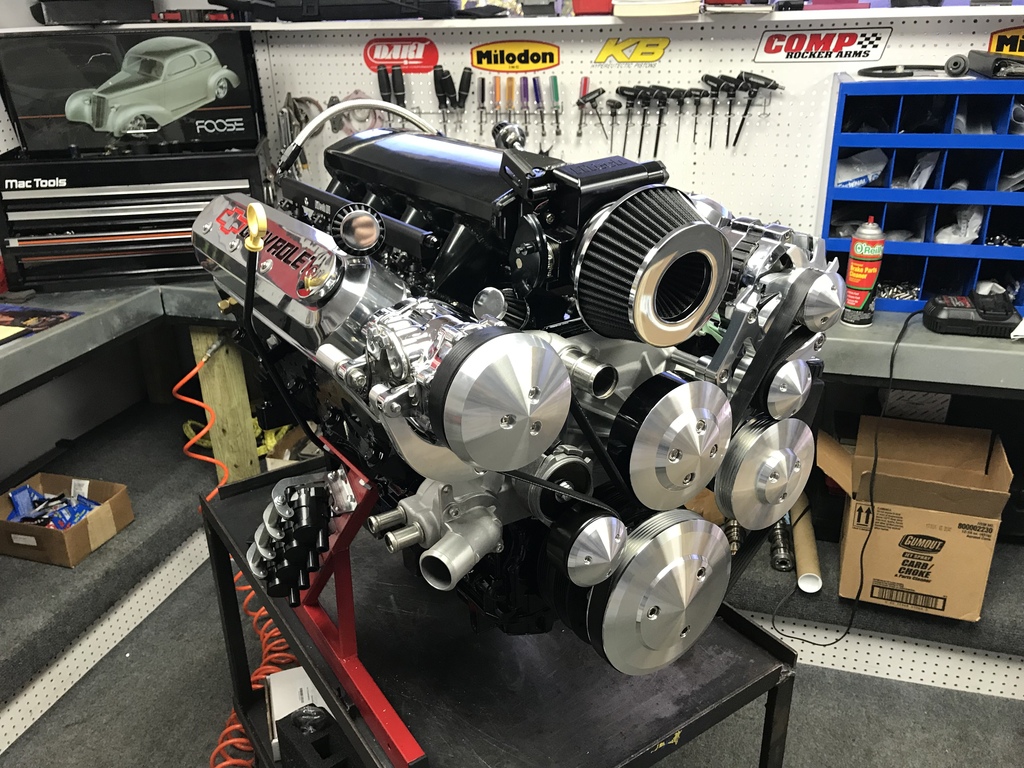

*Shown with optional upgrades

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Our LS3 416CI 575HP stroker crate engine package can be dyno tested ready for installation. This build features the an aluminum LS3 6 bolt block. Comes ready to install with the Muscle Car oil pan. We can also assist you in picking out the correct motor mount and header combo that will fit your hot rod. If you are in need of a serpentine pulley kit complete with components or a transmission we can assist you with that as well. All our LS series crate engines can be custom painted customers choice of color.

LS3 416 575HP Complete Crate Engine

  • Fully Machined LS3 aluminum Block
  • Forged steel 4.00” stroke crankshaft (Eagle, Scat or LPC)
  • 6.125″ Connecting Rods With ARP Bolts (Eagle, Scat or LPC)
  • Performance Forged Pistons (Mahle, Icon, DSS or JE)
  • Complete Assembly Internally Balanced
  • Performance rings hand filed to match application
  • Custom Ground Hydraulic Roller Camshaft
  • Hydraulic Roller Lifters
  • Performance Timing chain set
  • Melling Oil pump
  • LS3/L92 Rectangle Port Aluminum Performance Cylinder Heads
  • 2.165 Pro Series Intake Valves
  • 1.590 Pro Series Exhaust Valves
  • 1.295” Dual Performance Valve Springs
  • 7 Degree Valve Retainers And Locks
  • Performance Rocker Arms
  • Chrome Moly Pushrods
  • Main bolts
  • ARP Head bolts
  • Aluminum Timing And Rear Cover
  • Aluminum Valley Tray
  • Muscle Car Stroker Oil Pan
  • Aluminum Valve Covers (Black or Polished)
  • Harmonic Balancer
  • Water Pump
  • Fabricated Aluminum Intake Manifold (Black or Shiny)
  • DBC Throttle Body (Black or Shiny)
  • Fuel Injectors
  • Fuel Rails
  • LS3 Style Coils
  • Coil Harness
  • Spark Plugs
  • 8.5mm Ignition Wires
  • Holley Terminator X ECU
  • Engine Wiring Harness
  • Fuel Injector Harness
  • Wide Ban O2 Sensor
  • Intake Air Temperature Sensor
  • Crankshaft Position Sensor
  • Camshaft Position Sensor
  • Engine Coolant Temperature Sensor
  • Manifold Air Pressure Sensor
  • Oil And Filter
  • Engines are photo documented during the building process
  • 2 Year Unlimited Miles Warranty

CVF Logo

Pulley Systems

LS Alt Only Pulley Kit

LS Alt Only Pulley Kit

This system includes the following items:

  • Chrome 140 Amp Alternator
  • Polished Alternator Pulley
  • Polished Crankshaft Pulley
  • Polished Water Pump Pulley
  • Polished Aluminum Brackets With Fan & Nose Cover
  • 8 Rib Serpentine Belt
  • Installed on your engine

Add $1,675

LS Alt/PS Pulley Kit

LS Alt/PS Pulley Kit

This system includes the following items:

  • Chrome 140 Amp Alternator
  • GM Type 2 Power Steering Pump With Reservoir
  • Polished Alternator Pulley
  • Polished Crankshaft Pulley
  • Polished Water Pump Pulley
  • Polished Aluminum Brackets With Fan & Nose Cover
  • Polished Idler Pulley
  • Spring Loaded Belt Tensioner
  • 8 Rib Serpentine Belt
  • Installed On Your Engine

Add $1,875

LS Alt/PS And AC Pulley Kit

LS Alt/PS And AC Pulley Kit

This system includes the following items:

  • Chrome Plated 140 Amp Alternator
  • GM Type 2 Power Steering Pump With Reservoir
  • Chrome Plated AC Compressor
  • Polished Alternator Pulley
  • Polished Crankshaft Pulley
  • Polished Water Pump Pulley
  • Polished Aluminum Brackets With Fan & Nose Cover
  • Spring Loaded Belt Tensioner
  • 8 Rib Serpentine Belt
  • Installed on your engine

Add $2,300

Dyno Testing

Have your new crate engine Dyno tested!

Have your new crate engine Dyno tested!

Proformance Unlimited measures over 30 parameters that are monitored and logged to the computer during each engine test. A complete printout, including graphs.

We tune your engine on the dyno for maximum power. No more endless trial and error methods at the track are required. You see your results instantly! Dynamometer testing costs a fraction of what you have invested. Take the guesswork out of tuning - by dynoing !

This system includes the following items:

  • Your engine will be broken in under various load conditions
  • Tested in real world conditions through headers and mufflers
  • Precise horsepower and torque rating with graph and numerical print out
  • Induction system tuned for optimal performance
  • Dyno session video taped

Add $850

Dress Up

Custom Painted Engine

Custom Painted Engine

Have a custom painted car? Why not have a custom painted engine? Give us your paint code and we'll do the rest.

This system includes the following items:

  • Custom paint

Add $550
